Engineering Steel
What is Engineering Steel?
Engineering Steel is a steel that has had small amounts of one or more alloying elements (other than carbon) such as manganese, silicon, nickel, titanium, copper, chromium, and aluminium added. This produces specific properties that are not found in regular carbon steel. Engineering Steels are workhorses of industry because of their economical cost, wide availability, ease of processing, and good mechanical properties. Alloy steels are generally more responsive to heat and mechanical treatments than carbon steels.
Engineering steels are essentially wrought steels designed for mechanical and engineering applications. These require critical and often stringent levels of elasticity, strength, ductility, toughness, and fatigue resistance. In some cases, it may also require resistance to high or low temperatures, corrosive and other aggressive environments.
Applications of advanced high-strength steels, sometimes called ultra-high strength steels, are finding their way into current production vehicles all over the world because of their unique qualities that allow for lighter weight parts that are as strong or stronger than conventional steel counterparts.
There is a great variety of engineering steel types and shapes. Each is carefully tailored to meet specific user requirements, in terms of properties and performance and in some cases to facilitate the manufacturing and fabrication techniques. These techniques are then used to make components or parts. The composition, process route and heat treatment parameters are carefully selected to meet the customers’ needs.
Bright Bars
-
Bright Mild Steel Round Bar (BMS) 080A15/EN3B
Size 3mm dia 7/8” dia 65mm dia 4mm dia 25mm dia 2.5/8” dia 3/16” dia 1” dia 2.3/4” dia 5mm dia 1.1/8” dia 70mm dia 6mm dia 30mm dia 75mm dia 1/4” dia 1.1/4” dia 3” dia 5/16” dia 32mm dia 80mm dia 8mm dia 1.3/8” dia 3.1/4” dia 3/8” dia 35mm dia 85mm dia 10mm dia 1.1/2” dia 3.1/2” dia 7/16” dia 40mm dia 90mm dia 12mm dia 1.5/8” dia 3.3/4” dia 1/2” dia 1.3/4” dia 100mm dia 14mm dia 45mm dia 4” dia 15mm dia 1.7/8” dia 4.1/4” dia 5/8” dia 50mm dia 110mm dia 16mm dia 2” dia 4.1/2” dia 17mm dia 2.1/8” dia 4.3/4” dia 18mm dia 55mm dia 5” dia 3/4” dia 2.1/4” dia 130mm dia 20mm dia 60mm dia 5.1/2” dia 22mm dia 2.1/2” dia 6” dia
-
Bright Round Steel Bar 080A42/EN8
Size 8mm 35mm 2 ¾" 12mm 36mm 70mm 14mm 1 ½" 75mm 15mm 40mm 3" 16mm 1 ¾" 80mm ¾" 45mm 89.90mm 20mm 50mm 90mm 7/8" 2" 100mm 25mm 55mm 110mm 1" 2 ¼" 120mm 1 1/8" 60mm 5" 30mm 2 ½" 140mm 1 ¼" 65mm
-
Bright Round Bar 817M40T / EN24T
Size 10mm 2" dia 12mm 55mm ½" 2.¼" dia 5/8" 60mm dia 16mm 2 ½" dia ¾" 65mm dia 20mm 2 ¾" dia 7/8" 70mm dia 25mm 75mm dia 1" 3" dia 1 1/8" 80mm dia 30mm 3 ¼" dia 1 ¼" 85mm dia 35mm 3 ½" dia 1 ½" 90mm dia 40mm 95mm dia 1 5/8" 100mm dia 1 ¾" 105mm dia 45mm 115mm dia 50mm dia
-
Bright Free Cutting Round Bar 230MO7/EN1A
Size 3/16" 16mm 1 ½" 5mm ¾" 40mm ¼" 20mm 1 5/8" 8mm 7/8" 1 ¾" 3/8" 25mm 50mm 10mm 1" 2" 7/16" 1 1/8" 60mm 12mm 30mm 2.½" ½" 1 ¼" 80mm 9/16" 35mm
-
Bright Free Cutting Leaded Round Bar 230MO7PB / EN1APB
Size 5/32" 5/8" 1 3/8" 3/16" 16mm 35mm 5mm ¾" 1 ½" ¼" 20mm 40mm 8mm 7/8" 1 5/8" 3/8" 25mm 1 ¾" 10mm 1" 50mm 7/16" 1 1/8" 2" 12mm 30mm 60mm ½" 1 ¼" 2.½" 9/16" 80mm
-
Bright Mild Steel Flat Bar (BMS) 080A15 / EN3B
Size 10 x 3mm 1 ¼" x 3/16" 2 ¼" x 1"(EN1A) 4" x ½" ½" x 1/8" 1 ¼" x ¼" 60 x 3mm 4" x 5/8" ½" x 3/16" 1 ¼" x 5/16" 60 x 15mm 4" x ¾" ½" x ¼" 1 ¼" x 3/8" 60 x 20mm 4" x 1" ½" x 3/8" 1 ¼" x ½" 60 x 30mm 4" x 1 ½" 5/8" x 1/8" 1 ¼" x 5/8" 60 x 40mm 4" x 2" 5/8" x ¼" 1 ¼" x 1" 2 ½" x 1/8" 4" x 2 ½" 5/8" x 5/16" 1 40"x1.1"(EN1A PB) 2 ½" x ¼" 4" x 3" 5/8" x ½" 36 x 20mm(EN8) 2 ½" x 3/8" 5" x 3/8" ¾" x 1/8" 1 ½" x 1/8" 2 ½" x ½" 5" x ½" ¾" x 3/16" 1 ½" x 3/16" 2 ½" x 5/8" 5" x ¾" ¾" x ¼" 1 ½" x ¼" 2 ½" x ¾" 5" x 1" ¾" x 3/8" 1 ½" x 5/16" 2 ½" x 1" 5" x 3" ¾" x ½" 1 ½" x 3/8" 2 ½" x 1 ½" 5" x 3 ½" 20 x 3mm 1 ½" x ½" 2 ½" x 2" 5" x 4" 20 x 5mm 1 ½" x 5/8" 65 x 12mm 140 x 10mm 20 x 6mm 1 ½" x ¾" 70 x 10mm 150 x 20mm 20 x 8mm 1 ½" x 1" 70 x 40mm 6" x ¼" 20 x 10mm 40 x 3mm 75 x 6mm 6" x 3/8" 20 x 16mm 40 x 6mm 75 x 12mm 6" x ½" 25 x 4mm 40 x 8mm 75 x 15mm 6" x 5/8" 25 x 6mm 40 x 10mm 75 x 25mm 6" x ¾" 25 x 7mm 40 x 15mm 3" x 1/8" 6" x 1" 25 x 10mm 40 x 30mm 3" x ¼" 6" x 1 ¼" 25 x 14mm(EN8) 1 ¾" x ¼" 3" x 3/8" 6" x 1 ½" 25 x 15mm 1 ¾" x 1" 3" x ½" 6" x 2" 25 x 20mm 45 x 12mm 3" x 5/8" 6" x 3" 1" x 1/8" 45 x 20mm 3" x ¾" 180 x 20mm 1" x 3/16" 50 x 3mm 3" x 1" 200 x 20mm 1" x ¼" 50 x 10mm 3" x 1 ¼" 8" x 3/8" 1" x 5/16 50 x 15mm 3" x 1 ½" 8" x ½" 1" x 3/8" 50 x 16mm 3" x 2" 8" x ¾" 1" x ½" 50 x 25mm 3" x 2 ½" 8" x 1" 1" x 5/8" 50 x 30mm 80 x 10mm 8" x 2" 1" x ¾" 50 x 40mm 3 ½" x ¼" 10" x ½" 1" x ¾"(EN1A) 2" x 3/16 3 ½" x 3" 10" x 5/8" 1 1/8" x 1" 2" x ¼" 100 x 8mm 10" x ¾" 30 x 3mm 2" x 5/16" 100 x 20mm 10" x 1" 30 x 8mm 2" x 3/8" 100 x 25mm 11" x 3/8" 30 x 10mm 2" x ½" 100 x 30mm 11" x ½" 30 x 15mm 2" x 5/8" 100 x 40mm 12" x 3/8" 30 x 20mm 2" x ¾" 4" x 1/8" 12" x ½" 30 x 25mm 2" x 1" 4" x ¼" 12" x ¾" 1 ¼" x 1/8" 2" x 1 ½" 4" x 3/8" 12" x 1"
-
Bright Mild Steel Square Bar (BMS) 080A15 / EN3B
Size 3/16" x 3/16" 20mm x 20mm(EN1A) 50mm x 50mm 6mm x 6mm 7/8" x 7/8" 50mm x 50mm(EN8) ¼" x ¼" 25mm x 25mm 2" x 2" 8mm x 8mm 25mm x 25mm(EN8) 55mm x 55mm 3/8" x 3/8" 1" x 1" 60mm x 60mm 10mm x 10mm 1" x 1"(EN1A) 2.½" x 2.½" 7/16" x 7/16" 1" x 1"(EN1A PB) 65mm x 65mm 12mm x 12mm 1 1/8" x 1 1/8"(EN1A) 70mm x 70mm 12mm x 12mm(EN8) 30mm x 30mm 3" x 3" 12mm x 12mm(EN1A PB) 30mm x 30mm 3" x 3" (EN8) ½" x½" 1 ¼" x 1 ¼" 3.½" x 3.½"(EN1A) 5/8" x 5/8" 35mm x 35mm 90mm x 90mm 5/8" x 5/8"(EN1A PB) 1.½" x 1.½" 100mm x 100mm 16mm x 16mm 40mm x 40mm 4" x 4" ¾" x ¾" 1.¾" x 1.¾" 5" x 5" ¾" x ¾"(EN1A PB) 1.¾" x 1.¾"(EN8) 6" x 6" 20mm x 20mm 45mm x 45mm
-
Bright Free Cutting Hexagon Bar 230MO7PB / EN1APB
Size 0.248" A/F ¾" A/F 5/16" A/F 7/8" A/F 9mm A/F 24mm A/F 3/8" A/F 1" A/F 10mm A/F 30mm A/F 7/16" A/F 1 ¼" A/F ½" A/F 1 ½" A/F 9/16" A/F 41mm A/F 5/8" A/F 1 ¾" A/F 17mm A/F 50mm A/F
-
Hard Chrome Plate Rod for hydraulics Pistons (080M40) EN8 Material
Chrome Bar Sizes 12 mm Ø 12.7 mm Ø 15.87 mm Ø 16 mm Ø 20 mm Ø 22 mm Ø 22.22 mm Ø 25 mm Ø 25.4 mm Ø 28 mm Ø 30 mm Ø 31.75 mm Ø 32 mm Ø 35 mm Ø 38.10 mm Ø 40 mm Ø 44.45 mm Ø 45 mm Ø 50 mm Ø 50.8 mm Ø 55 mm Ø 56 mm Ø 57.15 mm Ø 60 mm Ø 65 mm Ø 70 mm Ø 75 mm Ø 76.20 mm Ø 80 mm Ø
Tool Steel
Tool Steel Round Bars
-
2083 Tool Steel Round Bars
Lengths Supplied in 3-4 mtrs Random Lengths
Size Kg/mtr 20mm 2.47 25mm 3.85 30mm 5.55 40mm 9.86 45mm 12.48 50mm 15.41 55mm 18.65 60mm 22.20 65mm 26.05 70mm 30.21 75mm 34.68 80mm 39.46 85mm 44.42 90mm 49.94 100mm 61.65 105mm 67.97 110mm 74.60 115mm 81.54 125mm 96.33 130mm 104.20 140mm 120.80 160mm 157.80 180mm 199.80
-
EN30B / 2767 Tool Steel Round Bars
Lengths Supplied in 3-4 mtrs Random Lengths
Size Kg/mtr 25mm 3.85 30mm 5.55 40mm 9.86 45mm 12.48 50mm 15.41 55mm 18.65 60mm 22.20 65mm 26.05 70mm 30.21 75mm 34.68 80mm 39.46 85mm 44.42 90mm 49.94 110mm 74.60 115mm 81.54 125mm 96.33 130mm 104.20 140mm 120.80 160mm 157.80 180mm 199.80
-
H13 / 2344 Tool Steel Round Bars
Lengths Supplied in 3-4 mtrs Random Lengths
Size Kg /mtr 13mm 1.04 16mm 1.58 20mm 2.47 25mm 3.85 30mm 5.55 40mm 9.86 45mm 12.48 50mm 15.41 55mm 18.65 60mm 22.20 65mm 26.05 70mm 30.21 75mm 34.68 80mm 39.46 85mm 44.42 90mm 49.94 100mm 61.65 105mm 67.97 110mm 74.60 115mm 81.54 125mm 96.33 130mm 104.20 140mm 120.80 160mm 157.80 180mm 199.80 200mm 246.60 260mm 416.80 290mm 518.60 300mm 554.40
-
O1 / 2510 Tool Steel Round Bars
Length Supplied in 3-4 mtrs Random Lengths
Size Kg/mtr 13mm 1.04 16mm 1.58 20mm 2.47 25mm 3.85 30mm 5.55 40mm 9.86 45mm 12.48 50mm 15.41 55mm 18.65 60mm 22.20 65mm 26.05 70mm 30.21 75mm 34.68 80mm 39.46 85mm 44.42 90mm 49.94 100mm 61.65 105mm 67.97 110mm 74.60 115mm 81.54 125mm 96.33 130mm 104.20 140mm 120.80 160mm 157.80
-
P20 / 2311 Tool Steel Round Bars
Lengths Supplied in 3-4 mtrs Random Lengths
Size Kg/mtr 13mm 1.04 16mm 1.58 20mm 2.47 25mm 3.85 30mm 5.55 40mm 9.86 45mm 12.48 50mm 15.41 55mm 18.65 60mm 22.20 65mm 26.05 70mm 30.21 75mm 34.68 80mm 39.46 85mm 44.42 90mm 49.94 100mm 61.65 105mm 67.97 110mm 74.60 115mm 81.54 125mm 96.33 130mm 104.20 140mm 120.80 160mm 157.80 180mm 199.80
D2 Tool Steel
-
D2 / 2379 Tool Steel Flat Bar
Lengths Supplied in 3-4 mtr Random Lengths
Size Kg/mtr 55 x 28mm 12.07 60 x 10mm 4.71 60 x 15mm 7.065 70 x 50mm 27.47 80 x 15mm 9.42 80 x 30mm 18.84 90 x 26mm 18.37 100 x 20mm 15.7 100 x 40mm 31.4 100 x 60mm 47.1 100 x 80mm 62.8 130 x 20mm 20.41 150 x 30mm 35.33 160 x 40mm 50.24 160 x 50mm 62.8 200 x 40mm 62.8 200 x 50mm 78.5 200 x 80mm 125.6 300 x 50mm 117.15 300 x 60mm 140.58 300 x 80mm 188.16
-
D2 / 2379 Tool Steel Square Bar
Length Supplied in 3-4 mtr random lengths
Size Kg/mtr 20 x 20mm 3.14 25 x 25mm 4.91 30 x 30mm 7.07 40 x 40mm 12.56 50 x 50mm 19.62 60 x 60mm 28.26 80 x 80mm 50.24 100 x 100mm 78.50 120 x 120mm 113.00
-
D2 / 2379 Tool Steel Round Bars
Lengths Supplied in 3-4 mtrs Random Lengths
Size Kg/mtr 13mm 1.04 16mm 1.58 20mm 2.47 25mm 3.85 30mm 5.55 40mm 9.86 45mm 12.48 50mm 15.41 55mm 18.65 60mm 22.20 65mm 26.05 70mm 30.21 75mm 34.68 80mm 39.46 85mm 44.42 90mm 49.94 100mm 61.65 105mm 67.97 110mm 74.60 115mm 81.54 125mm 96.33 130mm 104.20 140mm 120.80 160mm 157.80 180mm 199.80 200mm 246.60 260mm 416.80 290mm 518.60
Tubes

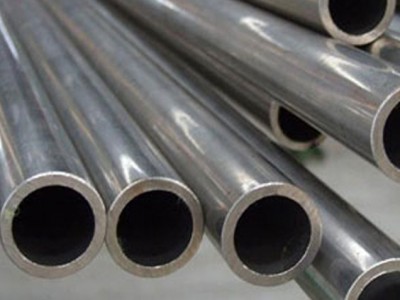

Mild Steel Tube
Cold Drawn Seamless
-
Cold Drawn Seamless Tubes to BS EN 10305-1 2002 E235+C
mm OD mm ID mm Wall Kg/m 19.05 13.77 2.64 1.07 19.05 12.55 3.25 1.27 19.05 10.93 4.06 1.50 25.40 15.64 4.88 2.47 25.40 12.70 6.35 2.98 28.58 22.08 3.25 2.03 31.75 25.25 3.25 2.28 31.75 19.05 6.35 3.98 34.13 26.01 4.06 3.01 38.10 31.60 3.25 2.79 38.10 28.58 4.76 3.91 38.10 25.40 6.35 4.97 41.28 34.78 3.25 3.05 44.45 34.69 4.88 4.76 44.45 31.75 6.35 5.97 50.80 44.30 3.25 3.81 50.80 38.10 6.35 6.96 50.80 25.40 12.70 11.93 63.50 57.00 3.25 4.83 66.68 53.98 6.35 9.45 76.20 69.70 3.25 5.85 76.20 63.50 6.35 10.94 101.60 95.10 3.25 7.88 101.60 88.90 6.35 14.92 101.60 76.20 12.70 27.84 104.76 95.20 4.78 11.79 127.00 122.78 2.11 6.50 127.00 120.50 3.25 9.92 150.00 144.00 3.00 10.88
-
Hydraulic Tube - Smooth Bore + Honed Bore
40 mm od x 30 mm id 45 mm od x 35 mm id 50 mm od x 40 mm id 55 mm od x 45 mm id 60 mm od x 50 mm id 70 mm od x 60 mm id 80 mm od x 70 mm id 90 mm od x 80 mm id 100 mm od x 90 mm id 95 mm od x 80 mm id 110 mm od x 100 mm id *More Sizes available on request.
Hot Finished Seamless
-
Hot Finished Seamless Steel Tubes to EN 10297-1 E355
mm OD mm ID mm Wall Kg/m 38 23.8 7.1 5.41 50.8 38.1 6.35 6.96 51 35 8 8.48 51 31 10 10.11 57.15 44.45 6.35 7.96 57.15 38.1 9.52 11.18 60.3 44.3 8 10.42 60.3 34.9 12.7 15.06 63.5 50.8 6.35 8.95 63.5 38.5 12.5 15.72 70 57.4 6.3 9.9 70 51 9.5 14.17 76.1 63.4 6.35 10.92 76.1 60.1 8 13.44 76.1 56.1 10 16.3 76.1 51.1 12.5 19.61 76.1 44.1 16 23.71 76.1 37.9 19.1 26.85 82.5 57.1 12.7 21.86 82.5 50.5 16 26.24 88.9 76.2 6.35 12.93 101.6 88.9 6.35 14.92 101.6 76.2 12.7 27.84 101.6 69.6 16 33.78 101.6 50.8 25.4 47.73 108 82.6 12.7 29.85 108 76 16 36.3 114.3 101.6 6.35 16.91 114.3 88.9 12.7 31.82 114.3 76.1 19.1 44.84 127 114.3 6.35 18.89 127 107.94 9.53 27.61 133 108 12.5 37.15 133 94.8 19.1 53.65 139.7 120.66 9.52 30.56 139.7 114.3 12.7 39.78 139.7 89.7 25 70.72 152.4 139.7 6.35 22.87 152.4 133.36 9.52 33.55 152.4 127 12.7 43.75 152.4 120.64 15.88 53.46 152.4 114.2 19.1 62.79 152.4 101.6 25.4 79.55 168.3 143.3 12.5 48.03 177.8 165.1 6.35 26.85 177.8 152.4 12.7 51.71 177.8 107.8 35 123.26 203.2 184.16 9.52 45.47 203.2 177.8 12.7 59.66 203.2 152.4 25.4 111.37 203.2 127 38.1 155.13 219.1 193.7 12.7 64.64 219.1 187.1 16 80.14 219.1 147.1 36 162.56 228.6 177.8 25.4 170.99 244.5 219.1 12.7 72.6 254 229 12.5 74.45 254 222 16 93.91 254 216 19 110.11 279.4 228.6 25.4 159.11 304.8 285.74 9.53 69.4 323.9 243.9 40 280.06
Black Steels
-
Black Mild Steel Round Bar 070M20 / EN3B
Size 50mm 160mm 65mm 180mm 80mm 200mm 100mm 220mm 110mm 230mm 120mm 240mm 130mm 260mm 140mm 280mm 150mm 300mm
-
Black Round Annealed 817M40 / EN24
Size 12.7mm 80mm 155mm 25mm 85mm 180mm 32mm 90mm 190mm 35mm 95mm 200mm 38mm 100mm 210mm 45mm 105mm 250mm 50mm 110mm 280mm 60mm 115mm 305mm 65mm 120mm 330mm 70mm 130mm 350mm 75mm 140mm 400mm
-
Black Round Hardened & Tempered 817M40T / EN24T
Size 60mm 95mm 165mm 65mm 100mm 180mm 70mm 105mm 200mm 75mm 115mm 260mm 80mm 130mm 305mm 85mm 140mm 90mm 160mm
For all enquiries, please contact us.
